Audio and Video Call
The AppLozic Audio-Video Call SDK provides high quality IP audio and video calls. With this SDK, your application's users can take part in secure 1-to-1 calls.
NOTE
The audio and video call feature is currently in its beta version and can be used only when using our pre-built UI.
Video and audio calls can be enabled for specific users or all user as per your use-case.
Setup
Pre-requisites
- Before setting up the audio-video call feature, make sure you have finished with the AppLozic messaging integration.
- You will also need to have push notifications setup.
Note
Without push notifications set-up, calls won't work. Please make sure they are set-up properly before proceeding further.
Audio-video call Gradle dependency:
To add our Audio-Video Call SDK add the following dependency in your app-level build.gradle.
implementation 'com.applozic.communication.uiwidget:audiovideo:3.0.1'
Note
The Audio-Video Call SDK includes our messaging SDK. If you add a dependency to this SDK, you do not need to add the dependency for our Applozic Messaging SDK.
Enable audio/video feature:
Audio-video call functionality needs to be enabled for our users. Before you log-in users, add the audio and video call feature and set it for the user object as shown below:
List<String> featureList = new ArrayList<>();
featureList.add(User.Features.IP_AUDIO_CALL.getValue()); //To enable audio call
featureList.add(User.Features.IP_VIDEO_CALL.getValue()); //To enable video call
user.setFeatures(featureList);
Add settings for audio/video activity handler:
In the onSuccess function of UserLoginTask [Refer here], add the following code:
ApplozicClient.getInstance(context).setHandleDial(true).setIPCallEnabled(true);
Map<ApplozicSetting.RequestCode, String> activityCallbacks = new HashMap<ApplozicSetting.RequestCode, String>();
activityCallbacks.put(ApplozicSetting.RequestCode.AUDIO_CALL, AudioCallActivityV2.class.getName());
activityCallbacks.put(ApplozicSetting.RequestCode.VIDEO_CALL, VideoActivity.class.getName());
ApplozicSetting.getInstance(context).setActivityCallbacks(activityCallbacks);
The above code will be used to identify the call activities for our Applozic Messaging SDK.
Add the call activities in your AndroidManifest.xml:
AndroidManifest.xml:<activity
android:name="com.applozic.audiovideo.activity.AudioCallActivityV2"
android:configChanges="keyboardHidden|orientation|screenSize"
android:exported="true"
android:launchMode="singleTop"
android:theme="@style/Applozic_FullScreen_Theme"/>
<activity
android:name="com.applozic.audiovideo.activity.CallActivity"
android:configChanges="orientation|keyboardHidden|screenSize"
android:label="@string/app_name"
android:launchMode="singleTop"
android:theme="@style/Applozic_FullScreen_Theme"/>
<activity
android:name="com.applozic.audiovideo.activity.VideoActivity" android:launchMode="singleTop"
android:configChanges="keyboardHidden|orientation|screenSize" android:exported="true"
android:theme="@style/Applozic_FullScreen_Theme"/>
ProGuard Setup
If you are using ProGuard, add the following to your ProGuard configuration file:
#Audio video ProGuard congig additions
-keep class tvi.webrtc.** { *; }
-dontwarn tvi.webrtc.**
-keep class com.twilio.video.** { *; }
-keep class com.twilio.common.** { *; }
-keepattributes InnerClasses
Congratulations
The setup is complete.

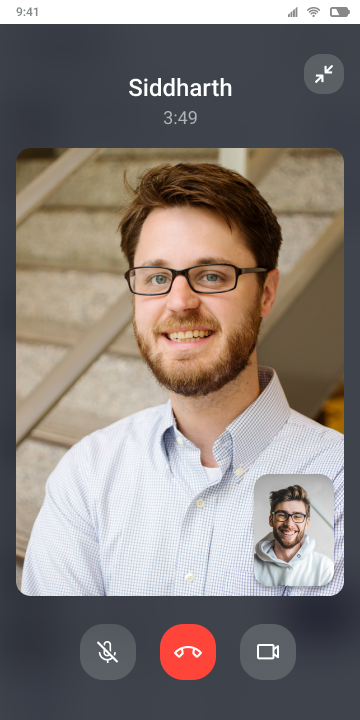

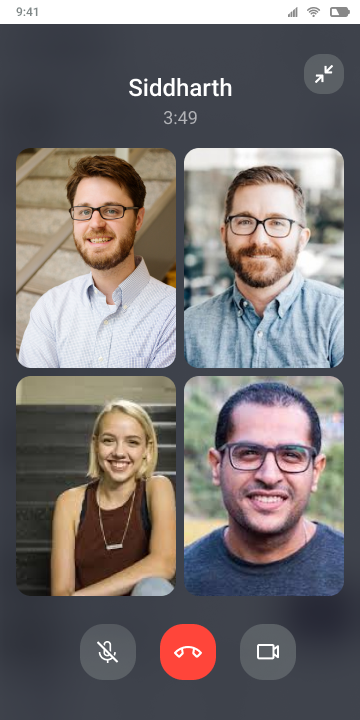

If a user has audio video calls enabled for them, they will be able to access the call options from the toolbar in the conversation screen/activity for the contact they wish to call.
If you are facing any difficulties, you can contact us at [email protected]
To check out our sample app, go here.
Updated 6 months ago
